Eidosolutions manufactures fully customized systems to meet the customer’s specific needs. Here you can see some examples of systems already built and installed for different applications.
SE-S1 cabinet
The SE-S1 cabinet is designed for electronic parts inspection; the system allows up to 10 components per cycle and uses a high resolution image intensifier and a microfocus source.
At the end of the verification cycle for each loaded component a LED reports the result so that the operator can deposit the waste into the appropriate binder.
- sealed 90kV microfocus
- high resolution image intensifier and digital camera
- brushless motors
- part presence photocells
- led indicators for result
- clever reject box
GE-S1 cabinet
The GE-S1 cabinet is used to inspect aeronautical fusions with radiography technique; it is equipped with a microfocus source with panoramic rod anode.
Individual exposures can be made or semi-automatic programs linked to the single technique of particular part can be created.
- 225kV open type microfocus
- panoramic rod anode
- brushless motors
In-line HS-S1 equipment
The HS-S1 belt system is specifically designed for automatic on-line inspection of rubber parts.
The use of high-resolution microfocus and sensor allows the identification of defects with a few dozen micron dimensions.
- high resolution TDI sensor
- microfocus
- in-line inspection cycle
- automatic analysis
- rejects blower
TE-S1 cabinet
The TE-S1 cabinet is specifically designed to inspect welds on tubes of different shapes and sizes.
The ceiling-hung C-arc allows to inspect a wide variety of tubes with longitudinal, circumferential welding and fittings in different positions.
- 225kV system
- pipe inspection up to 7 meters
- double wall sensitivity <2%
- C-arc manipulator hanging from the ceiling
CI-S1 cabinet

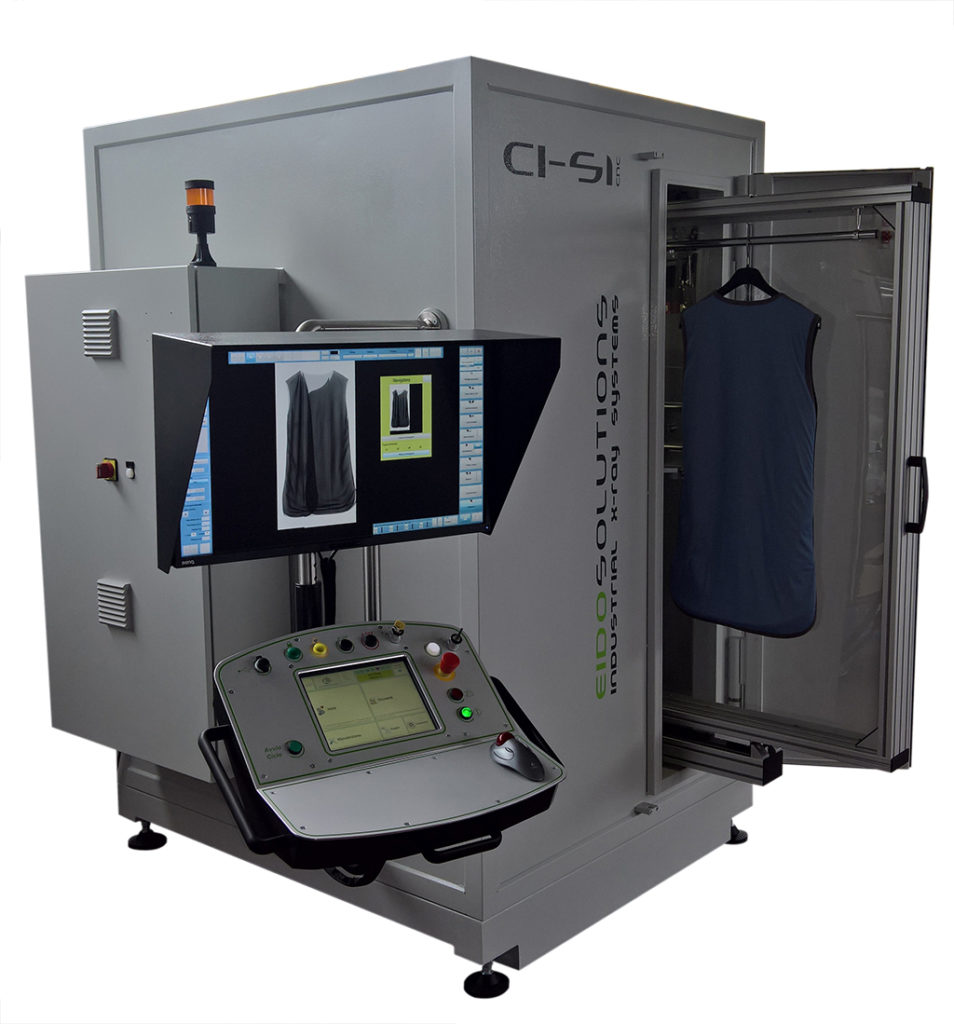

The CI-S1 cabinet is specifically designed to inspect medical clothes of different shapes and sizes.
The sledding door enable to hang the clothe to test; the system scans it and takes a measurement of the absorption level.
- 160kV system
- clothe up to 700mm by 1300mm
- high resolution linear sensor
- absorption measurement of the fabric
